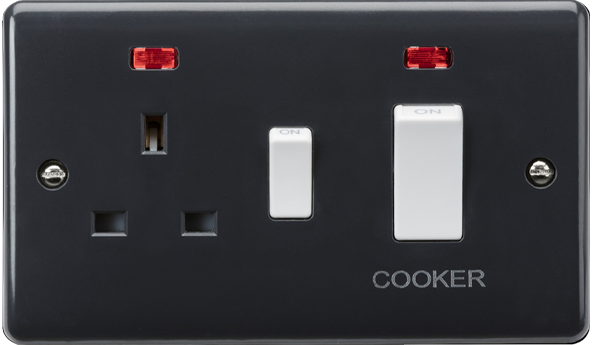

ST3311M
45A Double Pole Switch With 13A DP Switched Socket With Neons [Part M Compliant]
SPECIFICATION
| Standard(s) | BS EN 60669-1 |
| Rating | 45 Amp, 250V~ |
| Switch Type | Double Pole |
| Contact Gap | Normal Gap |
| Terminal Capacity | 4 x 1.0mm², 4 x 1.5mm² ,2 x 2.5mm² ,1 x 4.0mm² |
| Mounting Box Depth(Min) | 35mm |
| Fixing Centres | 120.6mm |
| Size | 86mmx146mmx7mm（Plate thickness） |
| Product Class 1 | Face plate does not need to be earthed |
| Ambient Operating Temperature | -5° to +40°C |
| Recommended Location | Internal Use Only |
| Maximum Installation Altitude | 2000m |
| IP Rating | IP2XD |
LINE DIAGRAM
