ST5023M

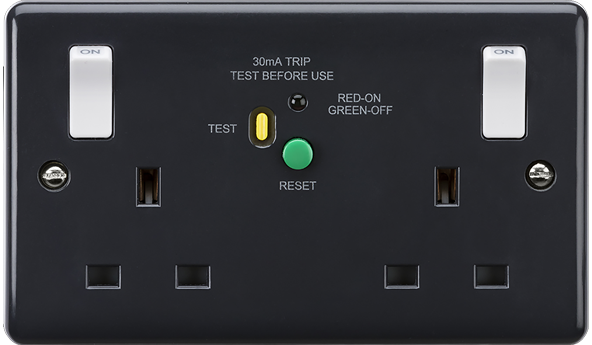

13A 2 Gang Double Pole RCD Switched Socket With White Outboard Rockers (Type-A) [Part M Compliant]
SPECIFICATION
| Standard(s) | BS 7288：2016 |
| Rating | 13 Amp, 250V~ |
| Type of RCD | Type A |
| Switch Type | Double Pole |
| RCD Contact Break | Double Pole |
| Contact Gap | Normal Gap |
| Max Tripping Current | Type Ａ: AC & Pulsating DC 30mA or 10mA |
| Average Trip Time | 30ms |
| Terminal Capacity | 3x 2.5mm² ,2x 4.0mm²，1x 6.0mm² |
| Mounting Box Depth(Min) | 35mm （To suit for 25mm box ,10mm Gasket is optional） |
| Fixing Centres | 120.6mm |
| Size | 86mmx146mmx12mm（Plate thickness） |
| Product Class 1 | Face plate does not need to be earthed |
| Ambient Operating Temperature | -5° to +40°C |
| Recommended Location | Internal Use Only |
| Maximum Installation Altitude | 2000m |
| IP Rating | IP2XD |

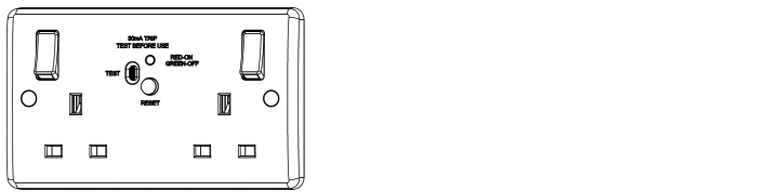

LINE DIAGRAM
