SPECIFICATION
| Standard(s) | BS 7288：2016 |
| Rating | 13A , 250V~ |
| Type of RCD | Type A |
| Mechanical Latching | Passive / Latching type |
| Switch Type | Double Pole |
| RCD Contact Break | Double Pole |
| Contact Gap | Normal Gap |
| Max Tripping Current | Type Ａ: AC & Pulsating DC 30mA or 10mA |
| Average Trip Time | 30ms |
| Terminal Capacity | 3x 2.5mm² ,2x 4.0mm²，1x 6.0mm² |
| Size | 116mm x 158mm x 90mm |
| Product Class 1 | Face plate does not need to be earthed |
| Ambient Operating Temperature | -5° to +40°C |
| IP Rating | IP66 |

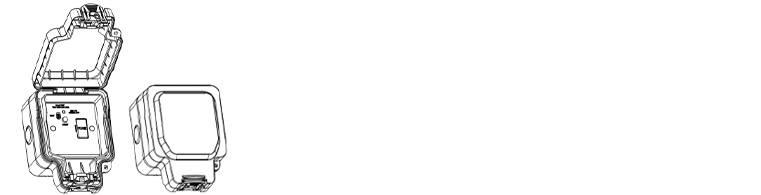

LINE DIAGRAM
