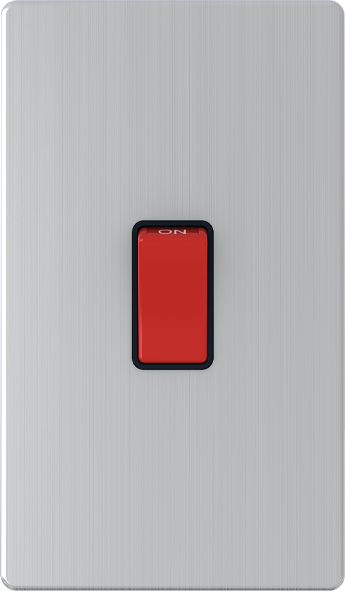

SPECIFICATION
| Standard(s) | BS EN 60669-1 |
| Rating | 45Amp, 250V~ |
| Switch Type | Double Pole |
| Contact Gap | Normal Gap |
| Terminal Capacity | 4x 4.0mm² ,3x 6.0mm²，1x 16.0mm²(L&N) / 3x 2.5mm² ,2x 4.0mm²，1x 6.0mm²(EARTH) |
| Mounting Box Depth(Min) | 35mm |
| Fixing Centres | 60.3mm,120.6mm |
| Size | 86mmx146mmx4.5mm（Plate thickness） |
| Product Class 1 | Face plate must be earthed |
| Ambient Operating Temperature | -5° to +40°C |
| Recommended Location | Internal Use Only |
| Maximum Installation Altitude | 2000m |
| IP Rating | IP2XD |
